Introduction

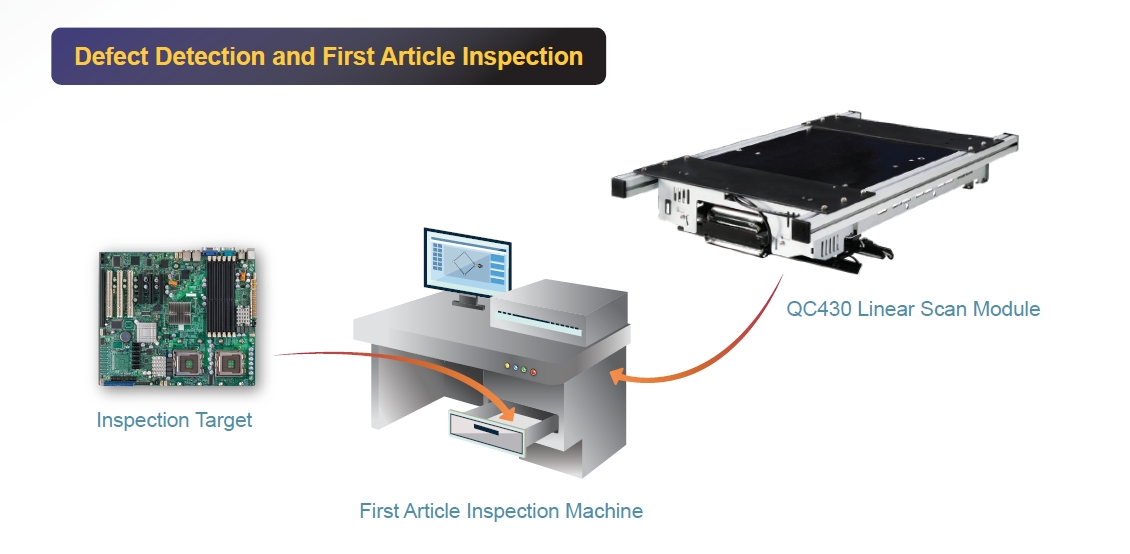

Microtek's Linear Scan Module features high-precision, full-color scanning with a non-contact design, enabling high-resolution image capture without touching the object.With a stable transmission system and modular structure, the QC430 is ideal for PWBA pre-reflow inspection, comparison, defect detection, and first article checks. It also supports integration across industries such as electronics, biotech, manufacturing, and imaging—offering a cost-effective and efficient inspection solution.

Features
FEATURES

• Non-Contact High-Precision Scanning

• Modular & Flexible Integration

• High-Speed USB 3.1 Transmission

• Adjustable Exposure for Optimized Imaging

• High-Precision & StableTransmission

• Dedicated SDK for Easy Integration

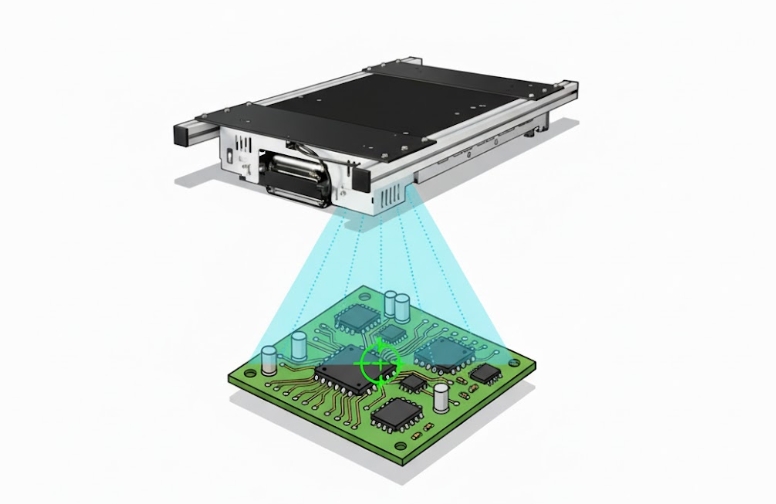

Non-Contact High-Precision Scanning
Delivers accurate scanning from a high working distance-ideal for non-flat or delicate objects.





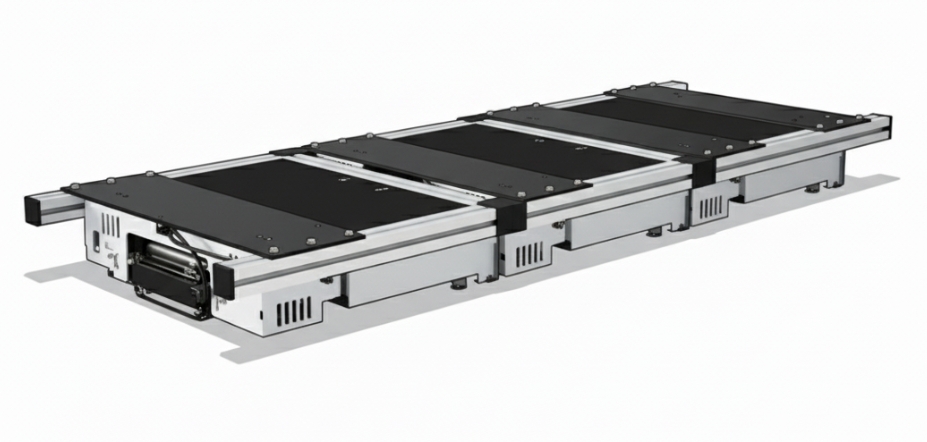

Modular & Flexible Integration
Modular design allows easy integration with various equipment and conveyor systems, offering greater flexibility ininstallation and maintenance.





High-Speed USB 3.1 Transmission
USB 3.1 interface enhances image capture speed and ensures high productivity.





Adjustable Exposure for Optimized Imaging
Exposure time can be fine-tuned based on object characteristics to ensure the best image quality.





High-Precision & StableTransmission
Precision transmission system ensures stable scanning, minimizes errors, and improves inspection accuracy.



Dedicated SDK for Easy Integration
Comes with a full-featured SDK for seamless system integration and easy secondary development.



Non-Contact High-Precision Scanning
Delivers accurate scanning from a high working distance-ideal for non-flat or delicate objects.





Modular & Flexible Integration
Modular design allows easy integration with various equipment and conveyor systems, offering greater flexibility ininstallation and maintenance.





High-Speed USB 3.1 Transmission
USB 3.1 interface enhances image capture speed and ensures high productivity.





Adjustable Exposure for Optimized Imaging
Exposure time can be fine-tuned based on object characteristics to ensure the best image quality.





High-Precision & StableTransmission
Precision transmission system ensures stable scanning, minimizes errors, and improves inspection accuracy.



Dedicated SDK for Easy Integration
Comes with a full-featured SDK for seamless system integration and easy secondary development.

Specifications
  • Item
    Details
  • Product Name
    Linear Scan Module
  • Image Sensor Type
    Color Linear CCD
  • Resolution
    21.2μm / 1200dpi
  • Light Source
    LED
  • Scanning Area
    304.8mm X 419.1mm(12”x16.5”)
  • Scanning Speed
    79.4s / 1200dpi
  • Connectivity
    USB 3.1
  • Working Distance
    30mm
  • Memory
    8GB
  • Output Format
    TIFF / JPG
  • Dimensions (L x W x H)
    702mm(L) X 406mm(W) X 132mm(H)
  • Weight
    11kg
  • Power Supply
    DC 24V,2.5A
  • Power Consumption
    60W
  • Operating Temperature
    5°C ~ 40°C

*Product specifications described herein are subject to change without notice.
