Medi-6000 Plus

Introduction

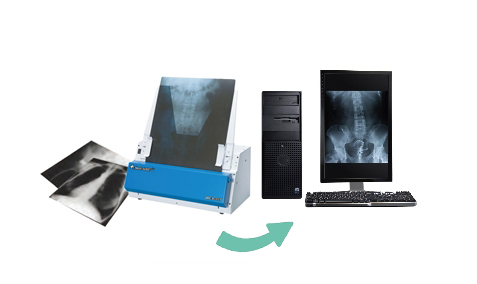

Microtek medical grade digitizer, the Medi-6000 Plus, can digitize X-Ray films rapidly in 7 seconds per chest X-Ray. With the advanced technology of the LED light source, the Medi-6000 Plus can reach full brightness and on/off operation immediately.

The Medi-6000 Plus can scan various sizes of X-Ray films up to 14x35 inches, letting user easily archive many kinds of X-Ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-6000 Plus provides great image quality at an affordable price. It is easy to operate, clean, and maintain.

With the optional MiPAX systems of DICOM ready function, Medi-6000 Plus is perfect for fast-paced environment of the medical doctor's office, QC Station and PACS system.

Features
FEATURES

Automatic Film Feeder with 15-page capacity (optional)
FDA certified
7 seconds per Chest X-Ray
No warm up time with LED light source
4.0 Dmax, 600 dpi optical resolution (42 µm spot size, 12 lp/mm)
Covers various sizes of x-ray films from 2.5"x2.5" to 14"x35"
Auto-crop & Auto-deskew
Supports DICOM 3.0 and telemedicine with optional MiPAX
Easy to operate, clean, and maintain
Offers better quality, excellent performance, and secure e-medical records

Auto Film Feeder with 15-sheet capacity (optional)





7 seconds per Chest X-Ray
Microtek medical grade digitizer, the Medi-6000 Plus, can digitize X-Ray films rapidly in 7 seconds per chest X-Ray ( Gray, 300 dpi ).





Archives X-Ray films from 2.5”x2.5” to 14”x35”





4.0 Dmax, 600 dpi optical resolution







Supports DICOM 3.0 and telemedicine with optional MiPAX







Auto Film Feeder with 15-sheet capacity (optional)





7 seconds per Chest X-Ray
Microtek medical grade digitizer, the Medi-6000 Plus, can digitize X-Ray films rapidly in 7 seconds per chest X-Ray ( Gray, 300 dpi ).





Archives X-Ray films from 2.5”x2.5” to 14”x35”





4.0 Dmax, 600 dpi optical resolution







Supports DICOM 3.0 and telemedicine with optional MiPAX







Specifications
  • Item
    Details
  • Product Name
    Medi-6000 Plus
  • Scanner Type
    X-Ray films, Sheet-fed digitizer
  • Image Sensor Type
    CCD
  • Resolution
    600 dpi (42 um spot size, 12 lp/mm)
  • Light Source
    LED
  • Scanning Area
    Film Scan Area
    Min: 2.5” x 2.5”(63.5 x 63.5 mm)
    Max: 14” x35”(355.6 x 889 mm)
  • Scanning Speed
    7 seconds @ 300 dpi, 14” x 17”
  • Dynamic Range
    Transparency 0.12D~3.7D, 4.0Dmax
  • Bit Depth
    8/12/16-bit grayscale
  • Connectivity
    Hi-Speed USB (USB 2.0)
  • Drivers
    TWAIN
  • Scanable Media Types
    Transparent
  • Supported File Types
    TIF, BMP, EPS, JPG, PSD, SCT, GIF, IFF, PCX, PXR, TGA, PDF, DCX
  • Available Film Holders
    Automatic Film Feeder with 15-page capacity (optional)
  • OS Support
    Windows 7/10/11 (ScanWizard Medi)
  • Dimensions (L x W x H)
    590 x 483 x 307 mm (with tray)
  • Weight
    19.18 lbs (8.7 kg)
  • Certifications
    FDA, CFDA, RoHS, WEEE
  • Power Source
    AC 100V ~ 240V, 47 ~ 63 Hz
  • Power Consumption
    54.9 Watts
  • System Requirements PC
    CD-ROM drive (for installing software)
    2 GB RAM or more
    Pentium IV PC or higher with USB port
    Microsoft Windows XP/ Vista/ Windows 7
  • Software Included
    Microtek ScanWizard Medi ; Adobe Acrobat Reader
  • Inbox Contents
    Digitizer unit
    Power adapter & power cord
    High-Speed USB 2.0 cable
    CD(s)
    Manual(s)
  • Accessories
    Microtek MiPAX-Xray software (Optional)
    Automatic Film Feeder (Optional) : Up to 15 pics of film (Min. 2.5”x10” / Max. 14“ x 17”)

*Product specifications described herein are subject to change without notice.
